2.54mm pitch 7pin Magnetic Connector 4 Contacts Pogo Pin Male Female

Nome da marca:	UPE
Número do modelo:	7P-2.54PH-4.0H
MOQ:	5.000
preço:	$1-$5
Detalhes da embalagem:	Sacos do PE
Condições de pagamento:	T/T

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

ISO9002

Nome:

Conectores magnéticos

material:

PA46/PA9T, latão C3604, SUS304, NdFeB N52

Volatagem:

12V

Atual:

Vida mecânica:

10000 ciclos Min.

vigor:

35±10gf na altura de trabalho

Resistência de contato:

50mΩ Max (PIN)

Teste de pulverização de sal:

48h

Suportando altas temperaturas:

260°C

Temperatura Operacional:

-40 ~ 85 ° C.

Cor:

preto, amarelo

Habilidade da fonte:

5KPCS/dia

Destacar:

2.54mm pitch magnetic connector

7pin pogo pin connector

magnetic male female connector

Descrição do produto

2.54mm Pitch 7-Pin Magnetic Connector with 4 Contacts Pogo Pin

2.54mm pitch 7-pin magnetic connector with 4 contacts pogo pin, male and female versions available with PA46/PA9T housing.

Company Overview

Union Precision Electronics Co., Ltd. is a professional manufacturer specializing in the R&D and production of connector components. As a leading company in China's connector industry, we focus on delivering competitive solutions including pogo pin connectors, magnetic connectors, and industrial waterproof connectors.

Our products are widely used in telecommunications, medical devices, aerospace & aviation, automotive, wireless equipment, wearable technology, and industrial testing equipment.

UPE is ISO9001 and ISO14001 certified, ensuring all products comply with EU RoHS environmental standards. We source key raw materials from Taiwan and Japan to guarantee superior quality.

Technical Specifications

Parameter	Specification
Pin Count	7-pin or customized
Pitch	2.54mm
Type	DIP
Pogo Pin Material	Brass
Housing Material	PA46/PA9T
Magnet Material	Neodymium iron boron
Magnet Grade	N52 (As requirement)
Mechanical Life	10000 cycle Min.
Current	2.0A
Voltage	DC 12V
Contact Resistance	50mΩ Max (PIN)
Salt Spray Test	48H
Withstanding High Temperature	260°C
Operational Temperature	-40°C to +85°C
Certification	ROHS or REACH compliant product
Testing	100% open and short test

Materials & Construction

Plunger: Brass C3604
Barrel: Brass C3604
Spring: Stainless Steel SUS304
Housing/Insulation: Engineering Plastic (PA46 or PA9T - Heat-resistant nylon)
Magnet: Sintered Neodymium Iron Boron (NdFeB)
Grade: N52
Magnet size: ∅3.5*L3.0mm, performance N52 magnetic force 4000 gauss
Polarity: S (South Pole) - N (North Pole) orientation specified
Corrosion Protection: Salt spray test for 24 hours

Plating & Surface Finish

Plunger & Barrel:
Base Layer: Nickel (Ni), thickness ≥ 50 microinches (≈1.27 µm)
Top Layer: Gold (Au), thickness 1-3 microinches (≈0.025 - 0.076 µm)
Purpose: Provides excellent electrical conductivity, low contact resistance, and corrosion protection
Film Thickness Test Note: Measurement is taken 1.0mm away from the riveting point

Product Images

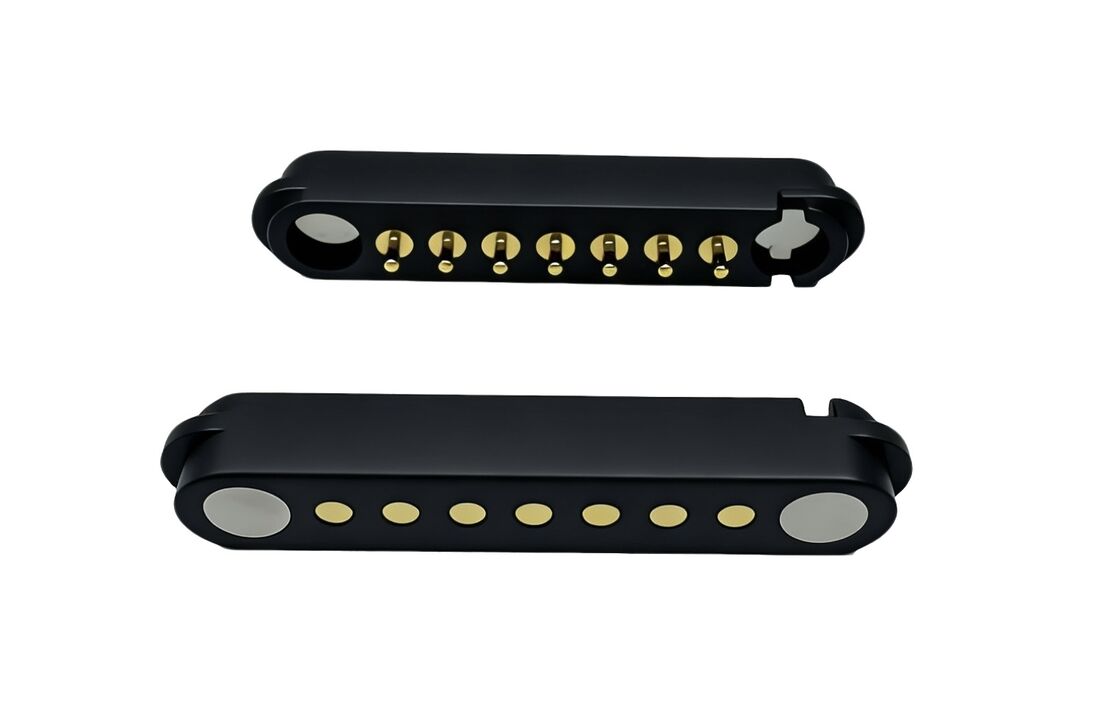

7-Pin Male Magnetic Connector:

7-Pin Female Magnetic Connector:

Product Advantages

Humanized design with automatic adsorption connection experience
Anti-fall protection: Easy to remove from charging interface without device damage
Extended lifespan: Up to 100,000-200,000 cycles
Waterproof design: Female end provides dustproof and waterproof protection (IPX8)
Fast charging capability: 5A-10A design for large current transmission
Customizable appearance to match customer application device design
Anti-short circuit structure design with foolproof protection
High-frequency signal transmission: Can replace traditional USB 2.0, HDMI 1.3 functions

Why Customers Choose Us

Professional customization service
Fast sample production capability
Strict quality control system
Processing with imported components
High-precision test equipment
Reasonable cost control procedures
Product environmental standards

Application

Design Services

Ordering & Shipping Information

Payment Methods: T/T, PayPal, OCBC

Sample Lead Time: Inventory sample 2-3 working days / Customized sample 5-7 working days

Production Lead Time: 10-15 working days

Markets Served: America, Europe, Asia, South Africa

Trade Term: EXW

Services: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Packaging & Shipping:

Any questions, please send to union@upetech.net
