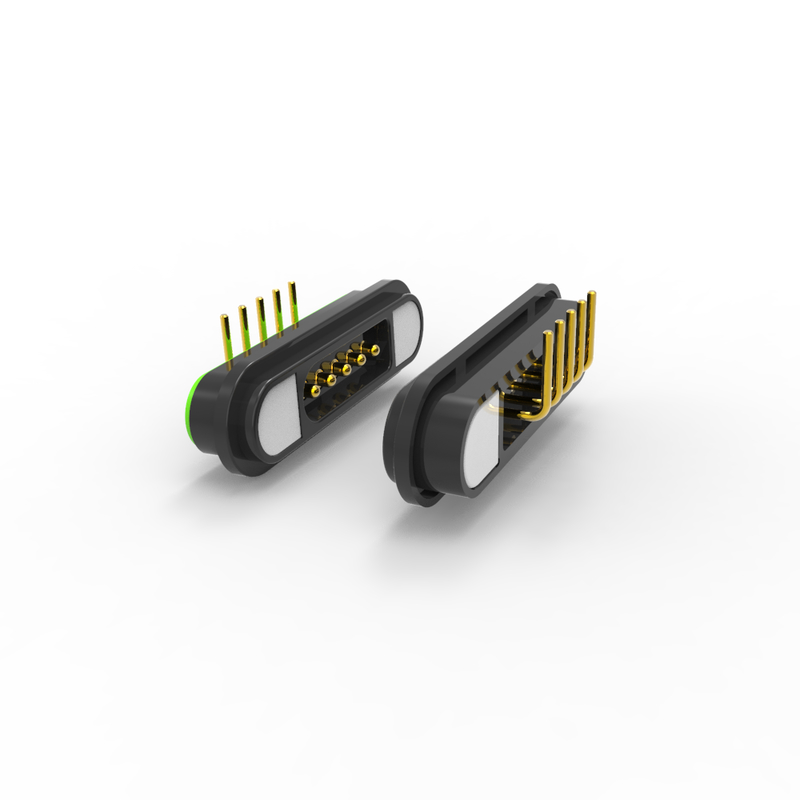

Customized gold plated 5 pin smart wearable magnetic connector connector

Customized gold plated 5 pin smart wearable magnetic connector connector

• The yellow metal needle part is gold-plated with brass surface
• The plastic material is HTN+30%UL94 V-0 black, which can withstand high temperatures
• The magnet adopts high-performance permanent magnet neodymium iron boron

• Spring force: 80g ± 20g at 1.0 working height
• Service life: 50,000 times minimum

• Reference voltage: 12 V
• Continuous working current: 5.0A
• Contact static impedance of the needle: 50mQ Max (PIN)
• High voltage test: AC1000V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC

• Environmental protection materials, ROHS, REACH compliant
• Attraction force of the magnetic male and female docking is more than 600G
• Anti-short-circuit structure design
• Polarity and electrical direction are clearly identified
• The magnet can be coated with epoxy resin, passing 48-hour salt spray test
• Pin feet are fixed on the PCB board with stable pin spacing size

• The PCB board can be soldered with a plug-in
• Mold molding and injection molding
• Wearable devices (smartwatches, AR/VR headsets)
• Medical equipment (portable diagnostics)
• Industrial IoT (modular sensors, robotics)
• Consumer electronics (magnetic charging docks)

• Fast prototyping: 3-5 days for samples
• Cost-effective: Competitive MOQ pricing
• Quality assurance: 100% automated testing
• High-tech production with precision engineering
• Systematic quality control for consistent performance

1. Automatic adsorption connected experience; Easy operation
2. Uses a magnetic interface to remove the device easier
3. High life cycle. It supports 50,000-300,000 reattachment life times
4. Easy to customize waterproof design, the female can achieve dust-proof and waterproof (IP68)
5. Support a high current (3A-20A), faster recharge
6. Excellent corrosion rating (48H-120H) meet the harsh environments
7. Shape customized to meet with product shape matching, improve product selling point
8. Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish the direction (user-oriented and user-friendly)
9. Excellent scalability interface, can be achieved (Power Signal Video Audio Jack etc)
10. Development time is short, low-cost mold for customization
11. Provide a reliable high RF signal transmission. Our connector is USB 2.0 compatible

1. You send us drawing or sample
2. Our professional engineering team conducts the assessment
3. You confirm the drawing and we make the sample to send you
4. You test the sample and approve, then place an order and pay 50% deposit
5. We start to make the product
6. When the goods are done, we take photos for your check and you then pay the balance
7. We deliver the products to you with DHL, TNT, UPS, Fedex

• Payment Term: T/T, 50% Deposit, 50% Balance
• Payment method: T/T, PayPal, OCBC
• Sample Lead Time: Inventory sample 2-3 Working day / Customized sample 5-7 Working day
• Production Lead Time: 10-15 Working day
• Made For: America, Europe, Asia, South African
• Trade Term: EXW
• Freight: Air, Sea, Express
• Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
