Customized 5pin female magnetic cable connector and male magmetic connector

Nome da marca:	UPE
Número do modelo:	VID0706A /VIC0750B
MOQ:	5000
preço:	$1-$5
Detalhes da embalagem:	Sacos do PE
Condições de pagamento:	T/T

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

ISO9002

Documento:

VID0706A.pdf

Nome:

5 pines de cabo de carregamento magnético

Material:

THN, latão, SUS304, NdFeB N52,TPE

Força de mola:

80 g±20 g

A cegonha-trabalhadora:

1,0 mm

Atual:

3.0A

Volatge:

12V

Força magnética:

550G

Vida mecânica:

50000 ciclos Min.

Resistência ao contato:

50mΩ Max (PIN)

Teste de pulverização de sal:

48H

Habilidade da fonte:

5KPCS/dia

Destacar:

5pin female magnetic cable connector

male magnetic connector cable

customized magnetic cable connector

Descrição do produto

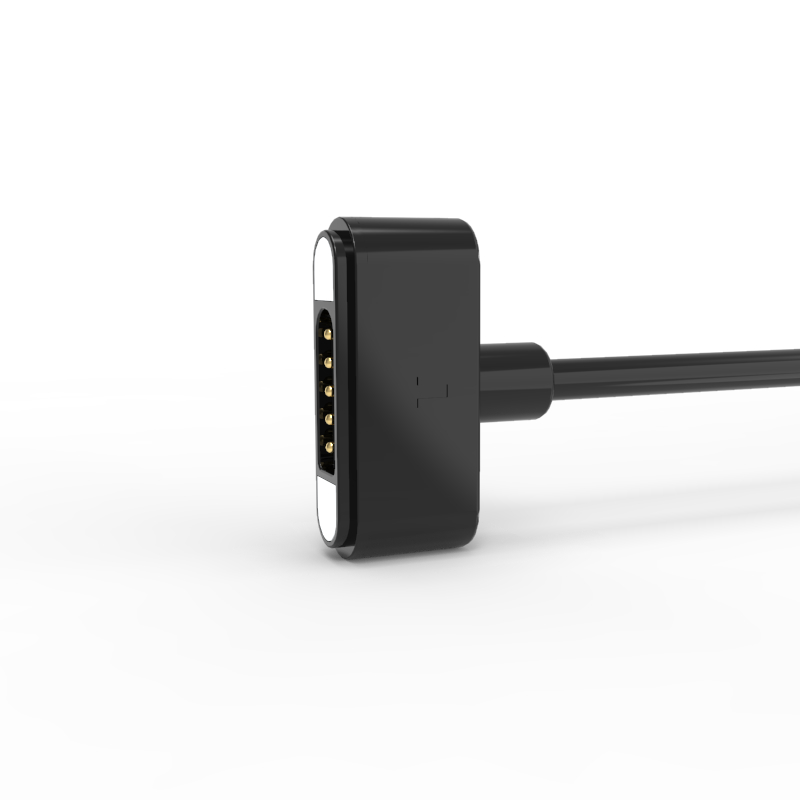

Customized 5pin Female Magnetic Cable Connector and Male Magnetic Connector

Key Features

1-meter (1000mm) flexible cable with 4-core TPE insulation (OD: 3.5mm)
Strong magnetic docking (>550G magnetic force) with polarity identification
12V/3A power delivery via gold-plated magnetic contacts
USB 2.0 data/power (stainless steel shell)
High durability: 50,000+ mating cycles, flame-retardant (UL94 V-0)

Materials & Construction

Component	Specification
Pogo pin	Brass, gold-plated surface (≤50mΩ contact resistance)
Plastic Housing	HTN + 30% UL94 V-0 black (high-temperature resistant)
Magnet	NdFeB permanent magnet (epoxy-coated option for salt spray resistance)
Outer Mold	Black TPE 80A (flexible, abrasion-resistant)
USB Connector	Stainless steel shell (USB 2.0)
Cable	4-core, 1000mm long: Red/Black: 65×0.08mm strands (power) White/Green: 16×0.08mm strands (data) Jacket: Black TPE

Mechanical & Electrical Properties

Parameter	Value
Spring Force	80g ± 20g @ 1.0mm height
Magnetic Adhesion Force	>550G
Service Life	50,000 cycles min
Rated Voltage	12V DC
Continuous Current	3.0A
Peak Current	4.0A (max)
Contact Resistance	≤50mΩ
High-Voltage Test	AC/DC 1000V, 0.5mA, 3 sec

Environmental & Compliance

RoHS & REACH compliant
Flame Rating: UL94 V-0
Salt Spray Test: 48 hours (with epoxy-coated magnet)

Technical Drawings

Magnetic Cable Connectors Application

Advantages of Magnetic Connector

Humanize design of automatic adsorption connection experience
Humanized anti-fall: easy to remove from charging interface without removing the device
Life time: up to 100,000-200,000 cycles
Waterproof design: female end can be dustproof and waterproof (IPX8)
Fast charging: 5A-10A magnet connector design withstands large current transmission
Customizable appearance to match customer's application device design
Product anti-short circuit structure design and foolproof
High frequency signal transmission capability, can replace traditional USB 2.0 HDMI 1.3 function for Video & Audio signal transmission

Order Process
