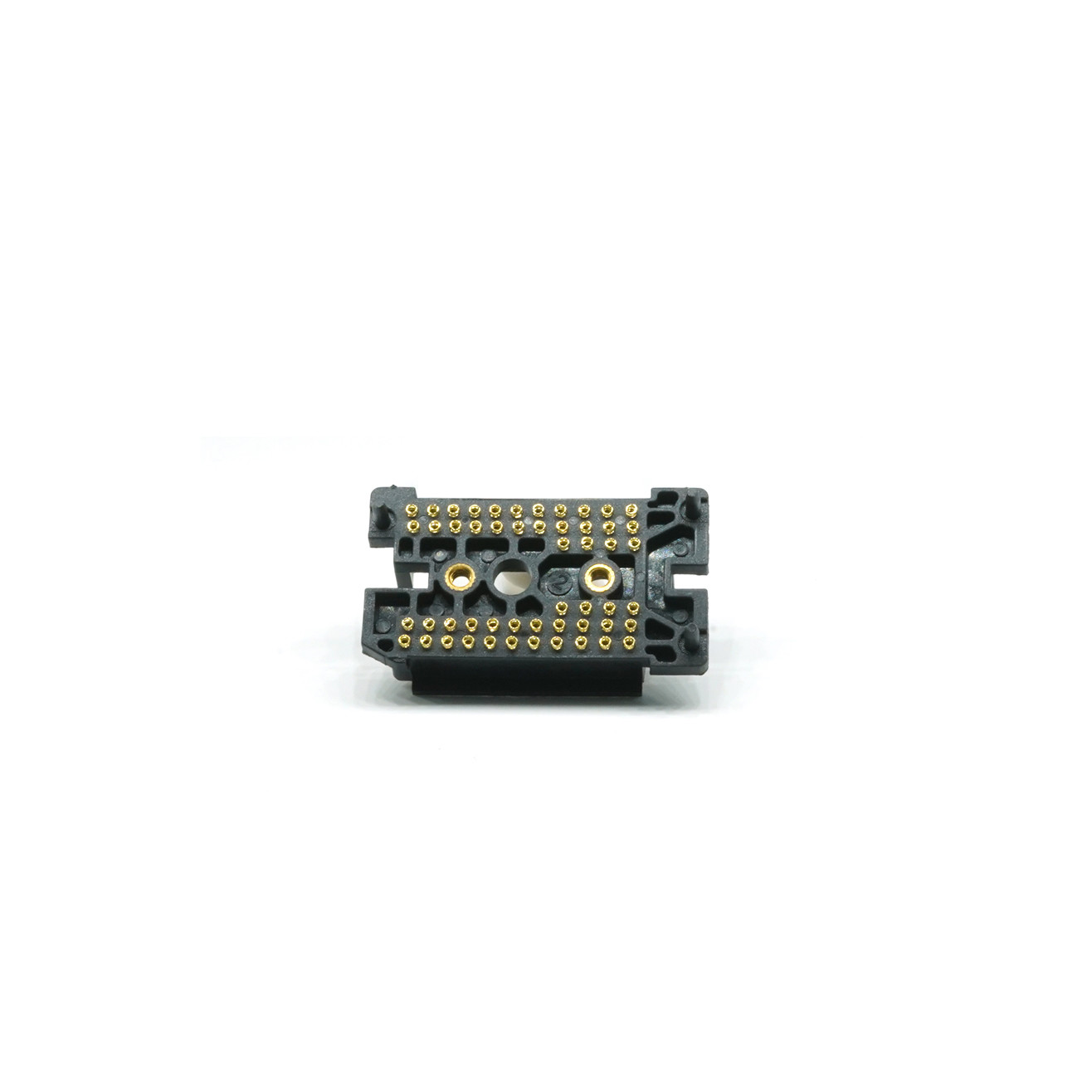

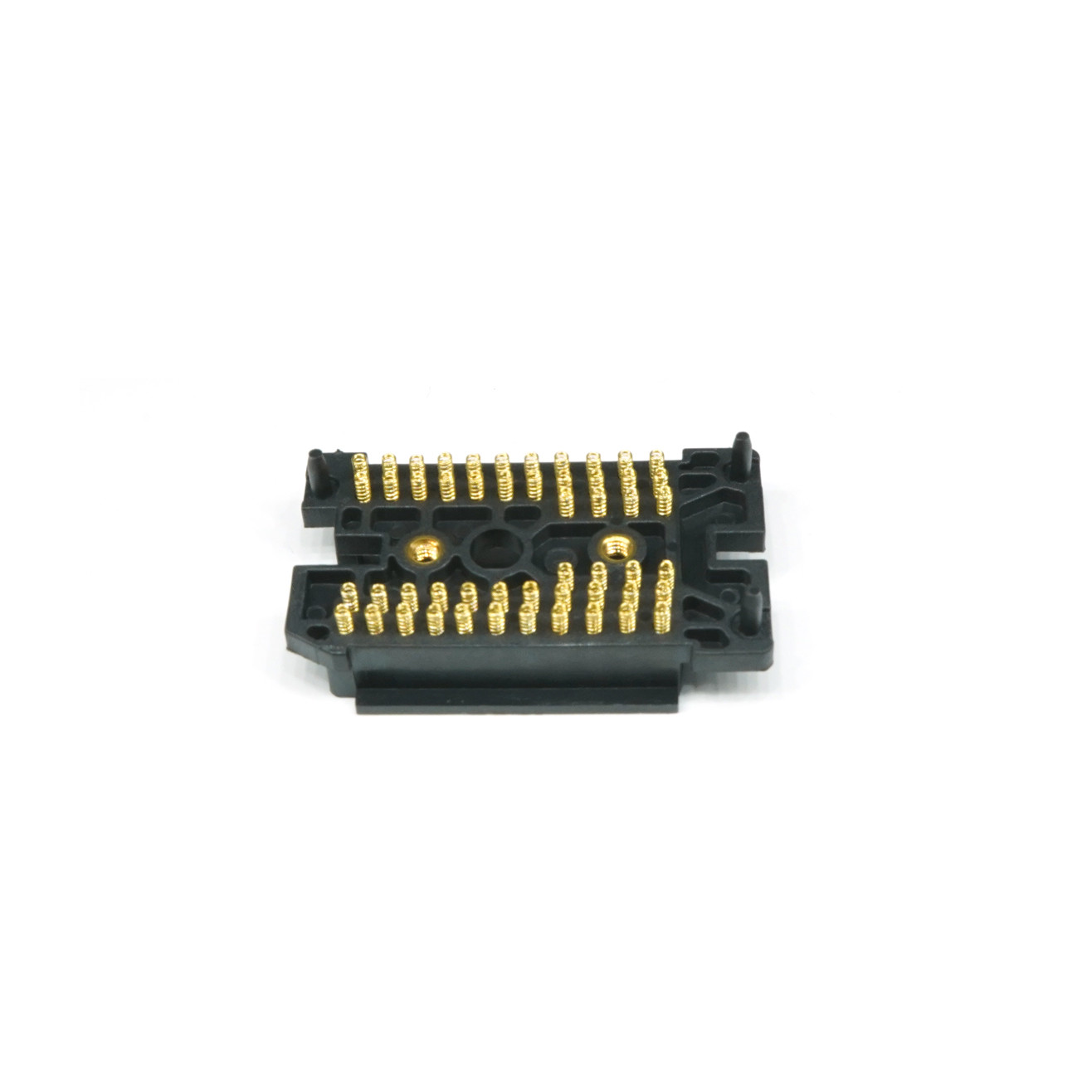

52-Position Printer Cartridge Spring-Loaded Connector 52Pin HP45 Pogo Pin Connector.
52-pin HP45 pogo pin connector is consists of three parts,respectively are plastic, pin, spring.
52-pin HP45 spring loaded connector is commonly used in inkjet printing systems, particularly with HP45 printheads. This connector interfaces with the printhead via spring-loaded pogo pins, ensuring reliable electrical contact.
Plastic
Material: PA9T (Polyphthalamide)
Color: Black
Pin
Material:C3604
Gold plating:5u"
Spring
1.Both ends be closed square.
2.During the packing processing, it's forbid to have double spring together from supplier.
3.As showing the spring force value on drawing,which it's measure after pre-load 10 times.
4.To inspect the spring under 10X scale gauge and the wire surface shall not have any damage;
The burrs of cutting position both ends which can't exceed the outer diameter of spring
5.The supplier should remove the magnetic properties from spring material by some device and filled 'with air in packaging bag during packing
6.RoHS&HF complant product.
|
Spring Data
|
|
Material
|
SUS304
|
|
Wire diameter
|
0.16mm (±0.010))
|
|
Outer diameter
|
1.11mm (+0.02/-0.02
|
|
Total turns
|
15
|
|
Active turns
|
11
|
|
Elasticity
|
71600 G(N/mm2)
|
|
Durability
|
10,000 cycles(min.)
|
|
Plated surface
|
W/0
|
|
Gold plating
|
5u"
|
Plastic size
Pin size
Spring size

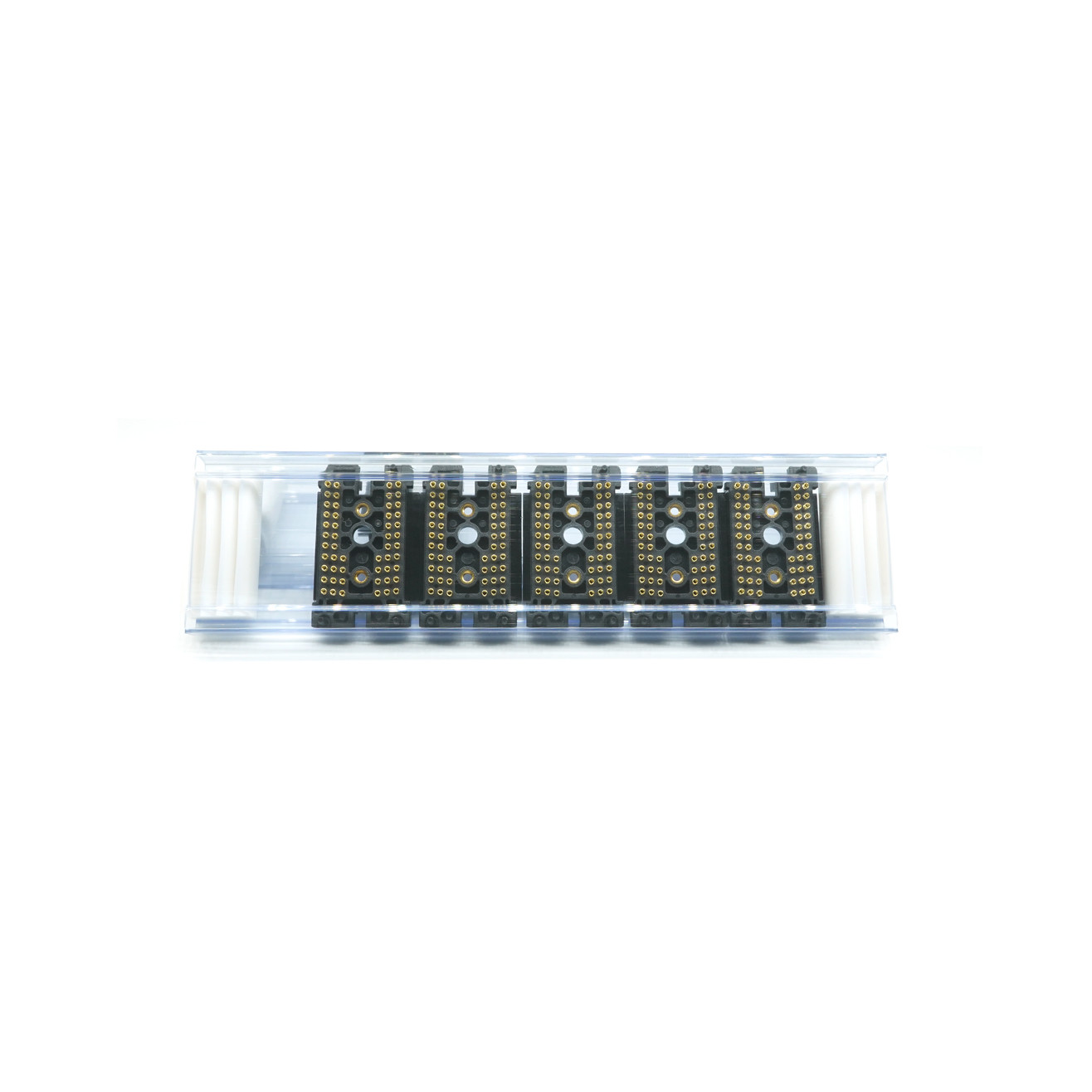

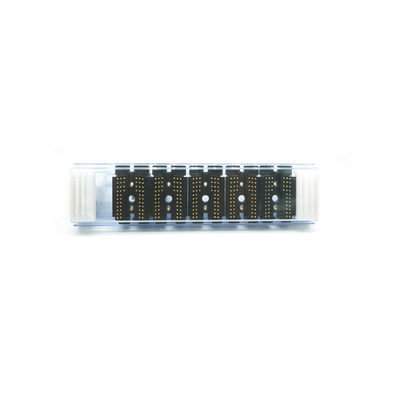

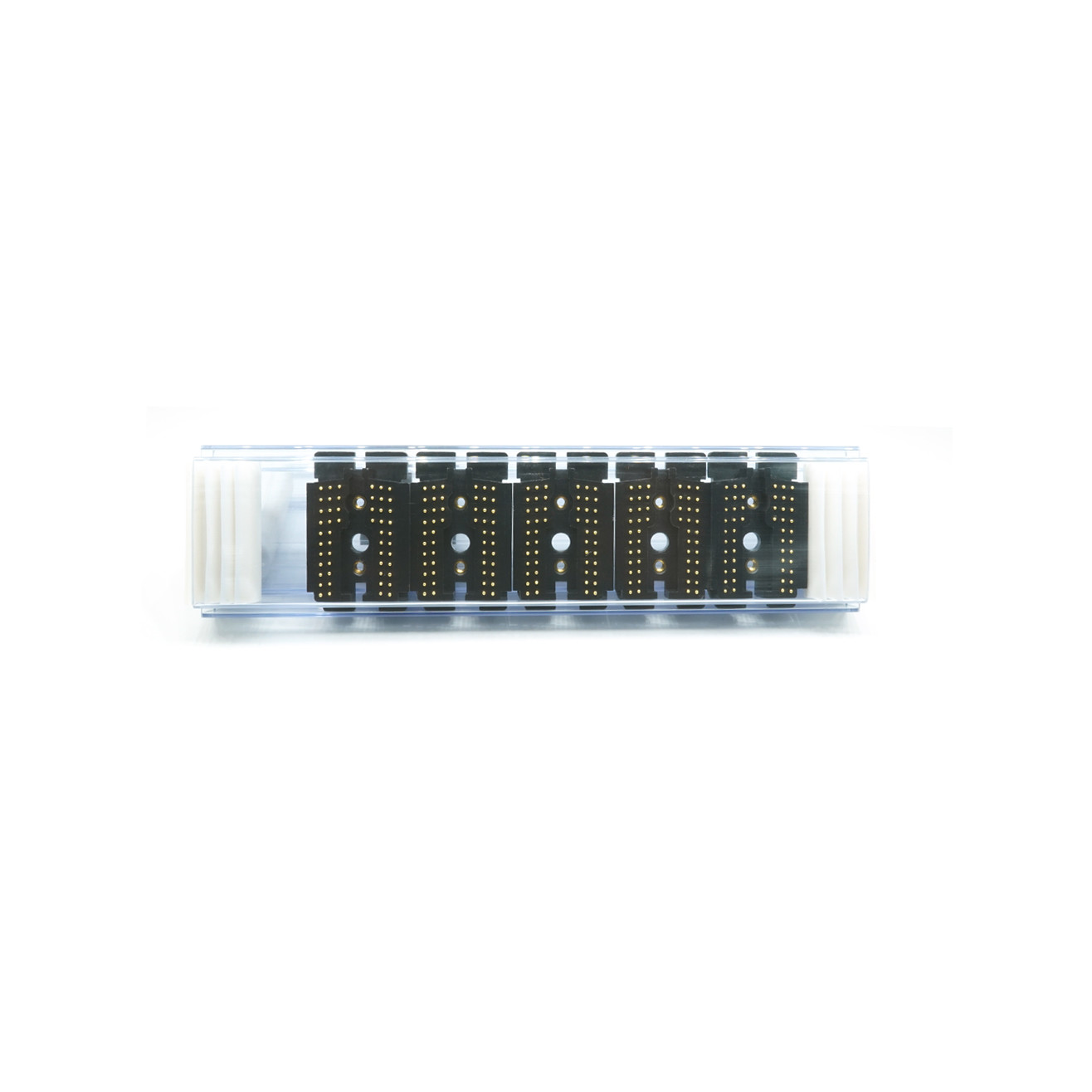

Package:
Advantages of UPE Pogo Pin Connector
Pogo Pin Connector, commonly known as spring pins or pogo pins, offer several advantages:
Reliability: UPE Pogo pins using CLIP Technology provide a consistent and reliable electrical connection, even in environments subject to vibration and mechanical shock.
Compact Design: Their small size allows them to fit into tight spaces, which is ideal for modern, compact electronic devices.
Flexibility: Pogo pins can adapt to surface variations, ensuring a stable connection even if the mating surfaces are not perfectly aligned.
Ease of Use: They are user-friendly, with straightforward installation and maintenance.
Durability: They are designed to withstand numerous cycles of connection and disconnection, making them highly durable
Our Advantage and your choice:
.UPE professional customized high current Pogo Pin with 15A-30A series, it has been mass produced.
.UPE developed 1.27mm,2.0mm 2.54mm pitch standard male and female 2pin-40pin Pogo pin connector with SMT / DIP / Right Angle / Solder Cup.
.Pogo Pin Life test up to 1000,000 cycles.
.All products can pass HF, RoHS REACH standard.
.100% electrical test provided report before delivery the goods.
.Custom of various shapes is available, small structure and high current.
Why do customers choose UPE?
1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
Some of customized Pogo Pin Connectors for reference:
Pogo Pin Connector Application Field:
How to Place Your Order with UPE?
1. Submit Your Requirements
Provide details such as:
.Connector type (power, data, hybrid, waterproof, etc.)
.Voltage & current ratings
.Cable length & specifications
.Magnetic polarity & alignment preferences
.Quantity & lead time
Special requirements (IP rating, shielding, certifications, etc.)
. Option 1: Fill out our RFQ (Request for Quote) Form on our website.
. Option 2: Email your specs directly to sunion@upetech.net (or your designated contact).
2. Receive a Custom Quote
Our engineering team will review your requirements.
We’ll provide a competitive quote, including:Pricing/Lead time/Prototyping options (if needed)
3. Approve & Confirm Order
Once the quote is approved, we’ll finalize the design & production schedule.
For new designs, we may offer 3D models or samples for testing.
4. Production & Quality Assurance
UPE manufactures your order with strict quality control checks.
We can provide test reports & certifications upon request.
5. Fast Delivery & Support
Your order ships via your preferred logistics method (DHL, FedEx, sea freight, etc.).
Our team remains available for technical support & future orders.
Payment Term:
50% Deposit (Paid upfront): Covers production costs (materials, labor).
50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.
Payment method:
T/T (Bank Transfer),PayPal ,OCBC Bank
Recommendation:
Use PayPal for samples (safer).
Use T/T for bulk orders (lower fees).
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
